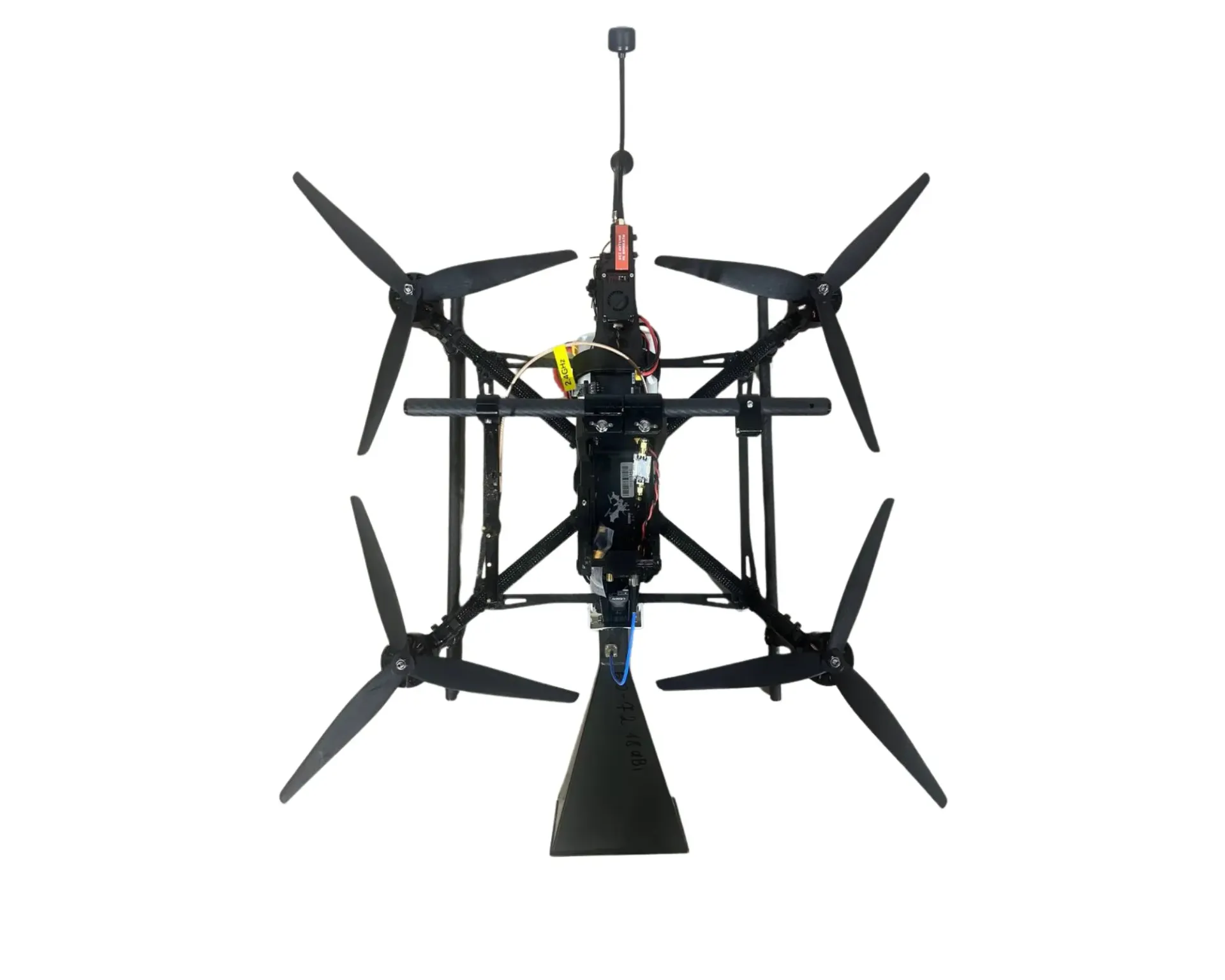

Chupacabra Repeater Drone - (Day/Night Analog)

13” FPV repeater drone - equipped with optical stabilization. Main function: increasing the communication range using a repeater "FlyMonkey" installed on board.

Main characteristics:

  • Size: 13”
  • Flight duration: 35 - 40 min
  • Оптична стабілізація дрону (утримання висоти, курсу та позиції без використання GPS/GNSS) на висоті 2 - 1000 м, а також повернення додому в разі втрати радіозв’язку
  • Cruising speed: 60 km/h
  • Cruising speed: 60 km/h
  • Start type: Vertical
  • Function RTH function:Yes
Package:

  • Set of frequency filters depending on the configuration

  • Decryptor

  • 1 batteries 8s5p Samsung 50s 25000 mAh

  • Documentation

  • Drone assembly with repeater

Due to constant product updates and improvements, actual specifications, design, and price may vary.




158,400.00 ₴ 158,400.00 ₴

  • Battery configuration
  • RX Diversity (Carrier Radio Receiver)
  • Video system (VTX+Carrier Camera)
  • VRX (Video Receivers+Repeater Antenna)
  • VTX (Video Transmitter Repeater)
  • TX/RX (Repeater Radio Receiver)
  • Repeater control antenna

Available modifications:

Battery configuration 1 battery (Base price), 2 batteries (Surcharge for +1 pc.), 3 batteries (Surcharge for +2 pcs)
RX Diversity (Carrier Radio Receiver) 2100-2700 MHz, 700-1050 MHz, 400-500 MHz, 1500-2000 MHz
Video system (VTX+Carrier Camera) 4.9 - 6.0 GHz, 3.0-5.0 GHz, 6.1-7.2 GHz, 3.3 GHz, 1.2 GHz, SIYI 2400-2500 MHz
VRX (Video Receivers+Repeater Antenna) 3.0-5.0 GHz / Antenna Horn 14 dBi, 4.9 - 6.0 GHz / Antenna Horn Metal, 4.9 - 6.0 GHz / Antenna Horn Plastic, 4.9 - 6.0 GHz / Sakura 14 dBi, 1.2 GHz / True RC 10 dBi, 6.1-7.2 GHz / Antenna Horn Metal, 6.1-7.2 GHz / Antenna Horn Plastic
VTX (Video Transmitter Repeater) 4.9 - 6.0 GHz, 3.0-5.0 GHz, 6.1-7.2 GHz, 1.2 GHz, 3.3 GHz
TX/RX (Repeater Radio Receiver) 2100-2700 MHz, 700-1050 MHz, 3.3 GHz (SkyZone)
Repeater control antenna From 380 to 560 MHz in 20 MHz steps, 700 - 1040 in 20 MHz steps, 2100 - 2700 in 20 MHz steps
