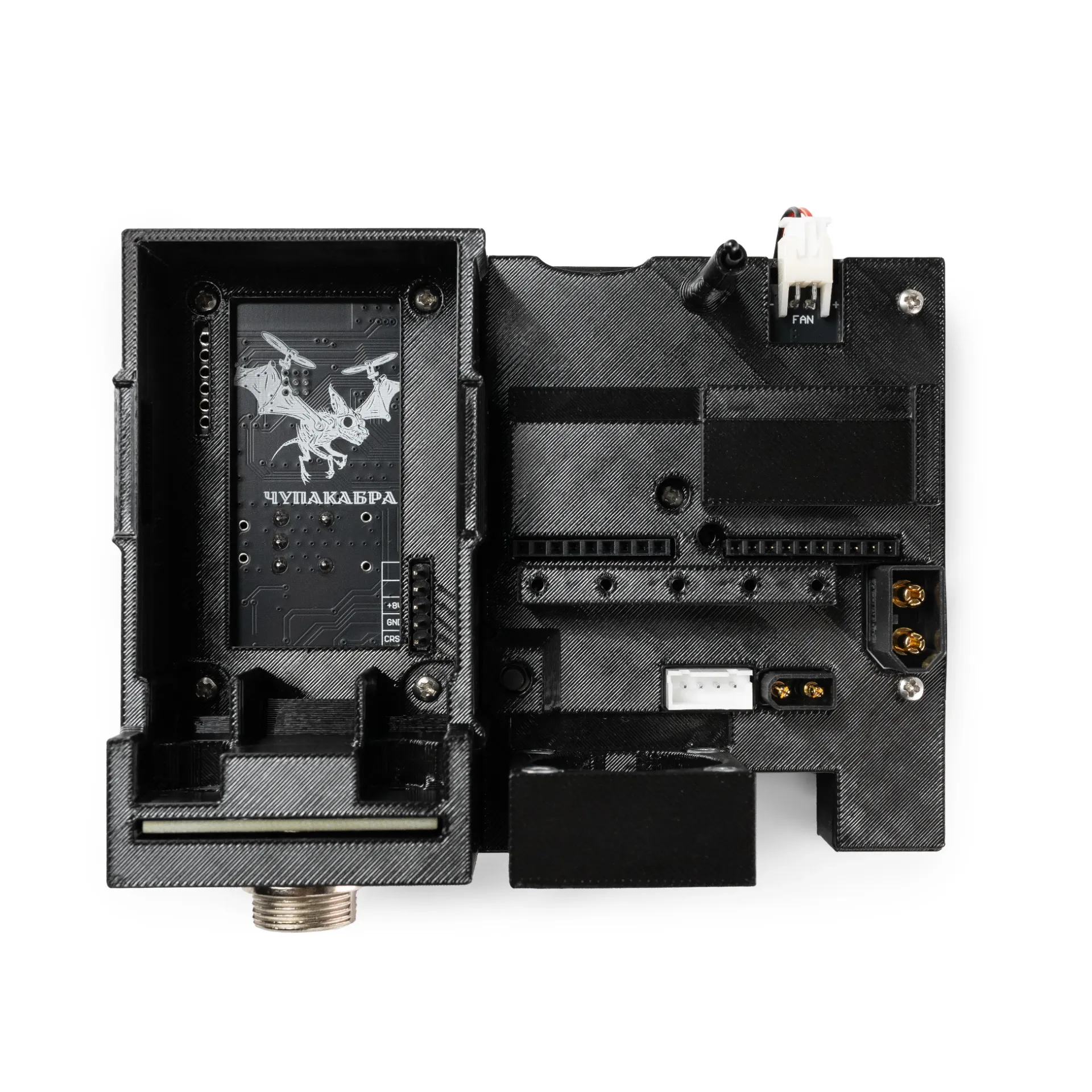

STMonkey Ground Station DIY KIT


Modular kit for creating a professional ground station
STMonkey Ground Station KIT is a ready-made hardware kit for building a powerful and flexible ground control and video receiving station for FPV, UAV and long-range systems.
 The kit allows you to integrate multiple video receivers, control transmitters, a rotary mechanism from STMonkey, and additional peripherals into a single system.

What is STMonkey Ground Station DIY KIT:
This is a set of boards in a plastic case, which is the basis for self-assembly of a ground station:

  • Convenient software - STMonkey APP
  • Video reception from different bands,
  • Remote activation,
  • Ability to extend the signal with a cable up to 500m,
  • Support for STMonkey rotary mechanism,
  • Scaling for specific tasks.
STMonkey KIT is not a ready-made case - it is an engineering platform that can be adapted to your own case, power supply, and configuration.

Main advantages of the KIT:

  • Modular architecture
  • Support for two or more VRX and TX
  • STMonkey APP software for controlling modules and rotary mechanism.
  • Compatible with popular FPV and LR systems
  • Automatic cooling control
  • Firmware update via USB-C
  • Aviation connectors
Central control board of the ground station:
STMonkey Main Board is the main control board for the entire system. It coordinates the operation of video receivers, control transmitters, peripherals, and mechanics.

Main features:

  • Power supply: 3–6S (12–25.2V)
  • Firmware update: USB-C
  • Temperature sensor: yes
  • Automatic fan control: yes
  • Rotation mechanism support: pitch + yaw
  • Main connector: GX16-8 pin (aviation)
  • Additional Peripherals for control: up to 16 connected devices (VRX, TX, etc.)
  •  Video receiver support (VRX)
Slot 1:

  • TBS Fusion
Skyzone Steadyview X, Steadyview  3.3, Steadyview 3.3 ELRS

  • THOR35 / THOR67
  • other modules with similar pinout
Slot 2:

  • 1.2 GHz: VM1373, RX1264*
  • 3.3 GHz: FT3500, RX3364*, SM333R
  • інші сумісні за pinout
RX1264*, RX3364* - software update required
It is possible to use third-party VRX with the same pinout (with limited software support).

Control transmitters (TX) support:

  • ELRS
  • TBS Crossfire
  • SiNE Link*
* SiNE Link is supported when using a CRSF adapter
* Slot 2 TX is activated after firmware update

Video Output and Local Processing Board
The STMonkey Controller Unit is responsible for distributing and outputting the video signal.

Features:

  • Power supply: 7–15 V

  • Video outputs (3 independent):

  • Main connector: GX16-8 pin

Who is STMonkey Ground Station KIT suitable for:

  • Earth stations with directional antennas
  • UAV and relay systems
  • Engineering and experimental projects
  • FPV long-range pilots
  • Professional and military applications
KIT package:

  • STMonkey Main Board
  • STMonkey Controller Unit Board
  • Connectors and interfaces (depending on configuration)
  • Documentation
Cable not included in the basic package

Important:

  • KIT is not a finished product
  • Case, power supply, antennas, VRX/TX modules are selected by the user
  • You need to choose a cable from the options or solder it yourself.
  • Designed for users with basic technical skills
Package:

  • Receiver mounts

  • Documentation




14,500.00 ₴ 14,500.00 ₴

 Buy
