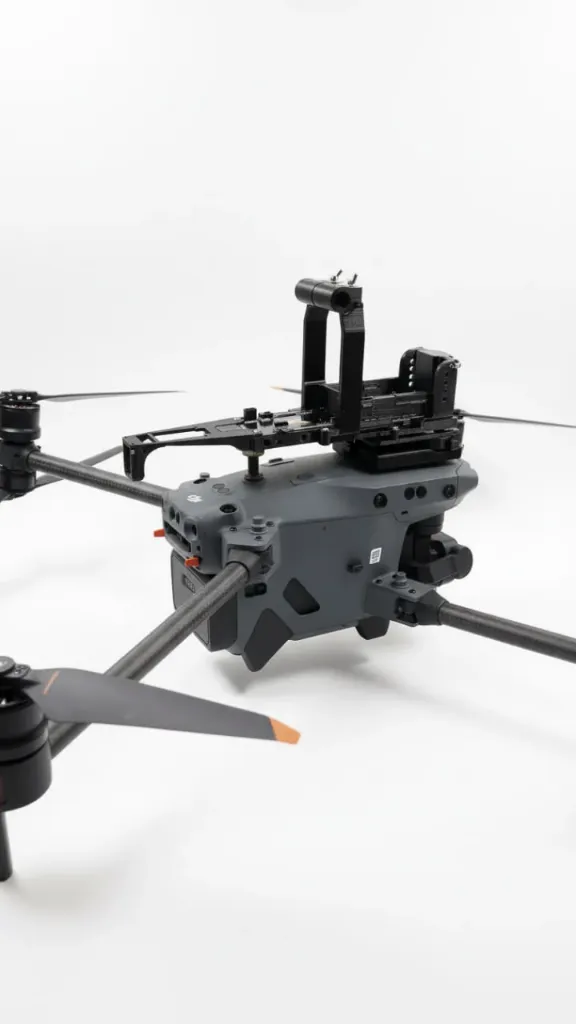

Central repeater control board
FlyMonkey Repeater DIY Kit is the main control board of the relay node. It coordinates the operation of the VRX, VTX, TX, servos and distributes power between all modules.
Main characteristics:
Power supply: 3–8S (12–34V)
Firmware update: USB-C
Battery charge indicator:
Servo support: 2 independent servos*
VTX protocol support: Smartaudio, IRC Tramp *Servos will be available in version 2.1
Video Receiver Support (VRX):
TBS Fusion
Skyzone Steadyview X, Steadyview 5.8, Steadyview 5.8 ELRS
THOR35 / THOR67
1.2 GHz: VM1373, RX1264
3.3 GHz: FT3500, RX3364, SM333R
other VRX with similar pinout
Control transmitters (TX) support:
Power Management
FlyMonkey KIT allows you to separately control the power supply of each module:
VRX Output: 5 В, ON / OFF
VTX Output: 9 В, ON / OFF
TX Output: 8.4 В, ON / OFF
XT30 Output: 7.4V, (external modules)
RX Output: 5 В
*Voltage selection in version 2.1
FPV operators
Relay drones and ground nodes
UAV networks with multi-level relay
Engineering and R&D projects
Professional and special communication systems
KIT set contents:
Important:
FlyMonkey is a KIT, not a ready-made device
Housing, antennas, VRX/VTX/TX and battery are user-selected
Recommended for users with technical experience
