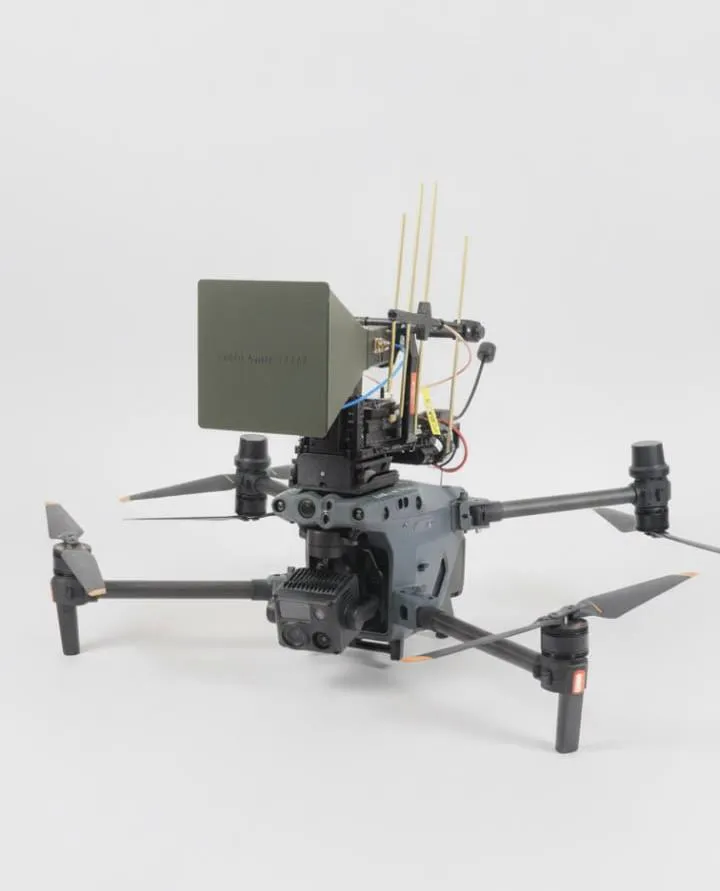

“FlyMonkey” repeater – a device for increasing the communication range of FPV drones and UAVs. It allows you to work on terrain, and due to its weight and unique software, it allows the pilot to work at a distance from the device even more comfortably. The device is equipped with a convenient mount for the Matrice 30, and can be mounted on other platforms.
Main characteristics:
- Type: Air
- Mount for Matrice 30T I Matrice 300 I MAVIC 3
- Weight: 650 g (with battery and Yagi-uda Antenna)
- Operating time up to 180 min
- Remote channel switching: 4.9 - 6.0 GHz
- Video antenna gain: 14 dBi - 20 dBi (depending on configuration)
- Control antenna gain: 8 dBi
- Video relay: 5.8-1.2 or 5.8-3.3 GHz
- Remote control of video transmitter power and channels
- Remote activation of the control transmitter, video receiver, video transmitter from a tablet
- Replaceable control modules, video receivers and transmitters
- Autonomous operation up to 40 min on standard battery
- Possibility of powering the TX module with an external cable from the repeater
- Compact and lightweight design for easy transportation
- Power supply 3 - 4S
- Product codified: not codified
Package:
2 batteries 4s1p 3500 mAh Samsung 35E
Adapter XT30 U-F-XT30 U-F
XT60 H-FXT30 U-M adapter
Battery fixing strap
Documentation
Repeater
TX on the frequency chosen by the buyer
Due to constant product updates and improvements, actual product specifications, design, and price may vary.
WHEN ORDERING A RETRANSMITTER, IT IS MANDATORY TO INDICATE ON WHICH BOARD YOU PLAN TO INSTALL IT (NAME AND MODEL)! THIS AFFECTS THAT YOU RECEIVE THE CORRECT MOUNTING!
