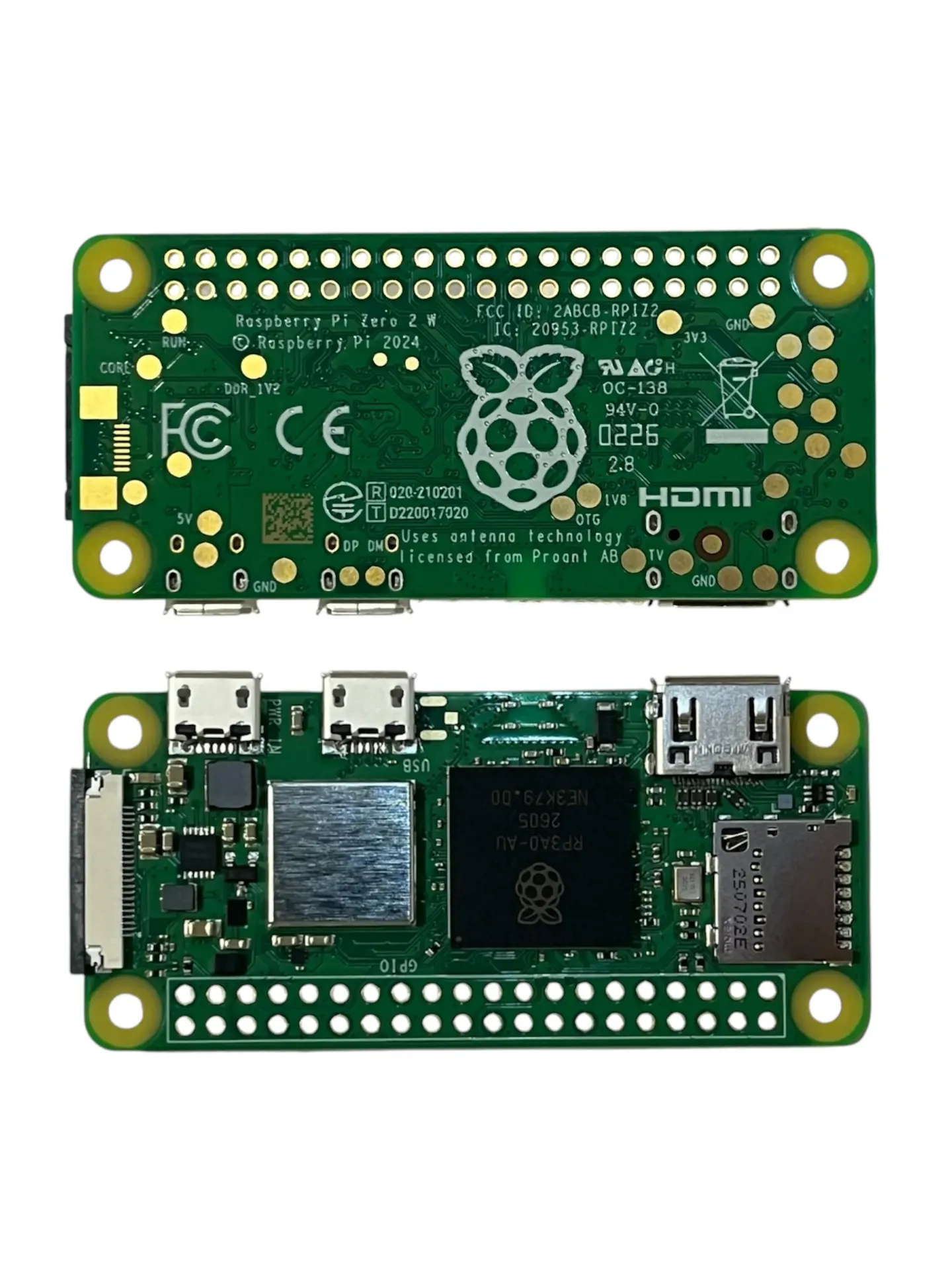

Raspberry Pi Zero 2 W is an ultra-compact microcomputer that is ideal for integration into on-board communication systems of UAVs and radio-controlled models. It is the most budget-friendly, but at the same time highly efficient solution for your complex. A wide operating temperature range from -20°C to +70°C allows the device to be used stably in difficult and extreme climatic conditions.
The board is based on a 4-core 64-bit Arm Cortex-A53 processor with a clock frequency of 1 GHz. The heart of the system is the Raspberry Pi RP3A0 single-chip circuit (SiP), which combines a Broadcom BCM2710A1 chip and 512 MB of LPDDR2 SDRAM. Thanks to the upgrade of the chip, the Raspberry Pi Zero 2 W demonstrates 40% higher single-threaded performance and up to 5 times faster multi-threaded computing compared to the first generation Zero.
Raspberry Pi Zero 2 W specifications:
Central Processing Unit (CPU): Broadcom BCM2710A1, 4-core, 64-bit Arm Cortex-A53 with a frequency of 1 GHz;
Graphics Processor (GPU): VideoCore IV GPU, with support for OpenGL ES 1.1, 2.0;
Random Access Memory (RAM): 512 MB LPDDR2 SDRAM;
Wireless interfaces:
Video output (miniHDMI): miniHDMI port with support for PAL and NTSC standards, compatible with HDMI 1.3 and 1.4, supports resolutions from 640×350 to 1920×1200 pixels;
USB interface: micro-USB with On-The-Go (OTG) support;
Storage memory: microSD card slot;
Camera interface: CSI-2 cable connection connector;
I/O ports: 40-pin GPIO interface (not soldered);
Overall dimensions: 30 × 65 mm;
Power supply: 5V / 2.5A (minimum recommended) via microUSB port.
